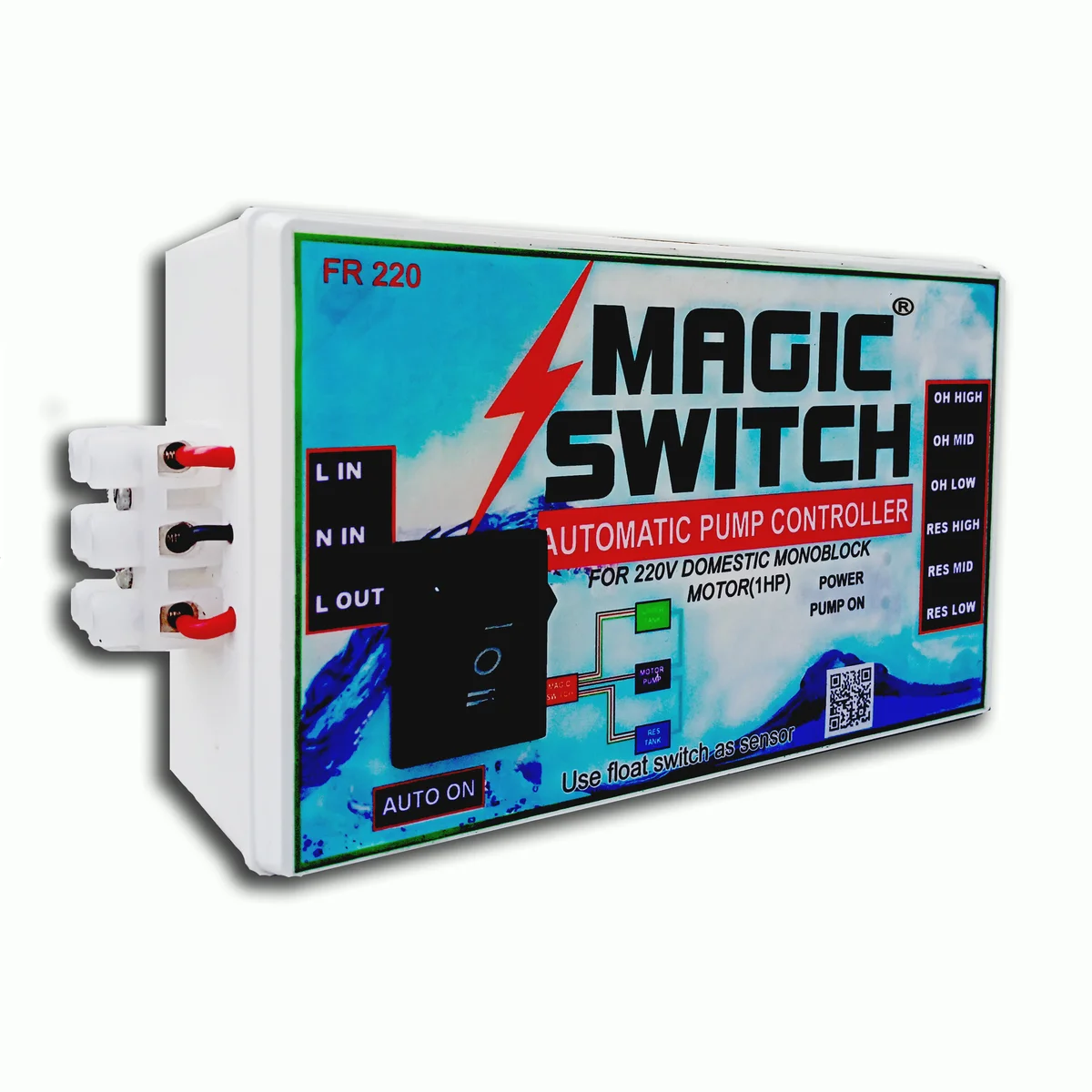

Magic Switch FR 220

Magic Switch FR 220 is for your Monoblock/Openwell Water Pump.It can control your Reservoir & Over head tank both.Install this & Save water, Electricity,money.

◆MODEL - FR 220.

◆BODY MATERIAL -Plastic body.

◆WEIGHT - 500 gm.

◆DIMENSION - 6 /3.5/2 inch.

◆INPUT VOLTAGE - 220 V. AC/50-60 hz.

◆WATTAGE - 5 Watt.

◆HP - Max 2 HP.

◆WARRANTY - 1 Year.

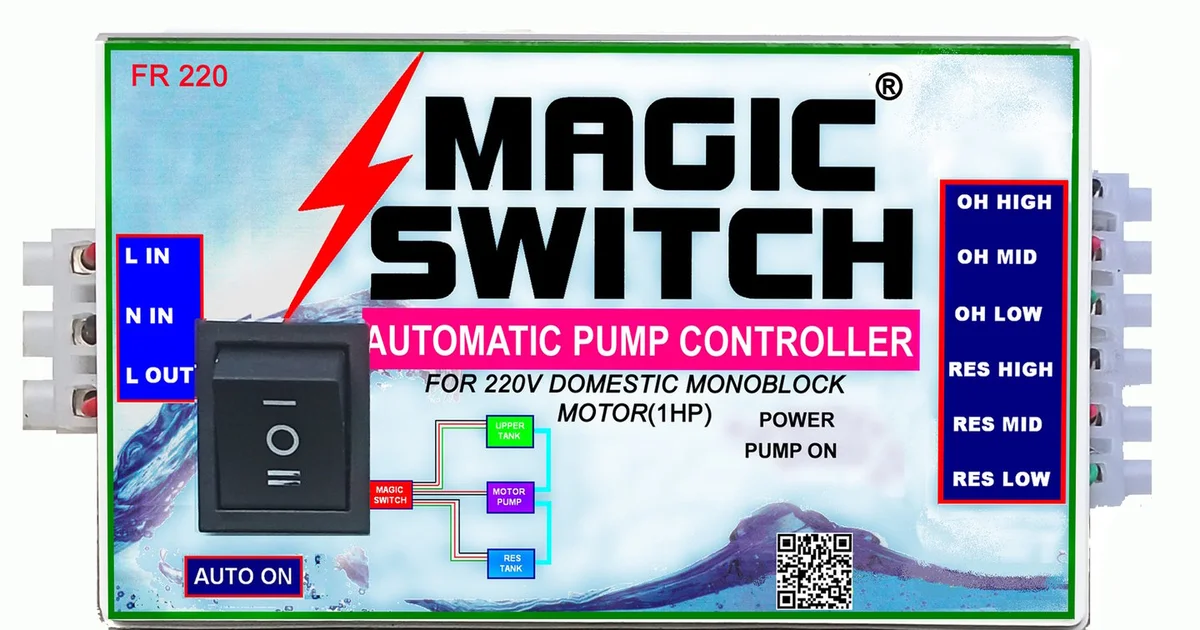

◆CONNECTION POINT -

▪Phase In,Neutral - 220 V AC supply to operate the device.

▪Phase Out - supply to Motor Pump.

▪Oh high,Oh mid,Oh low - Will be connected to the over head tank sensor.

▪Res high,Res mid,Res low - Will be connected to the Reservoir tank sensor.

◆ABOUT - FR 220 device is suitable for 220 volt Open Well Motor Pump or Monoblock Pump, which is switched on & off by simple toogle switch or MCB.FR 220 device will work with metal type sensor/float sensor and magnet sensor also.

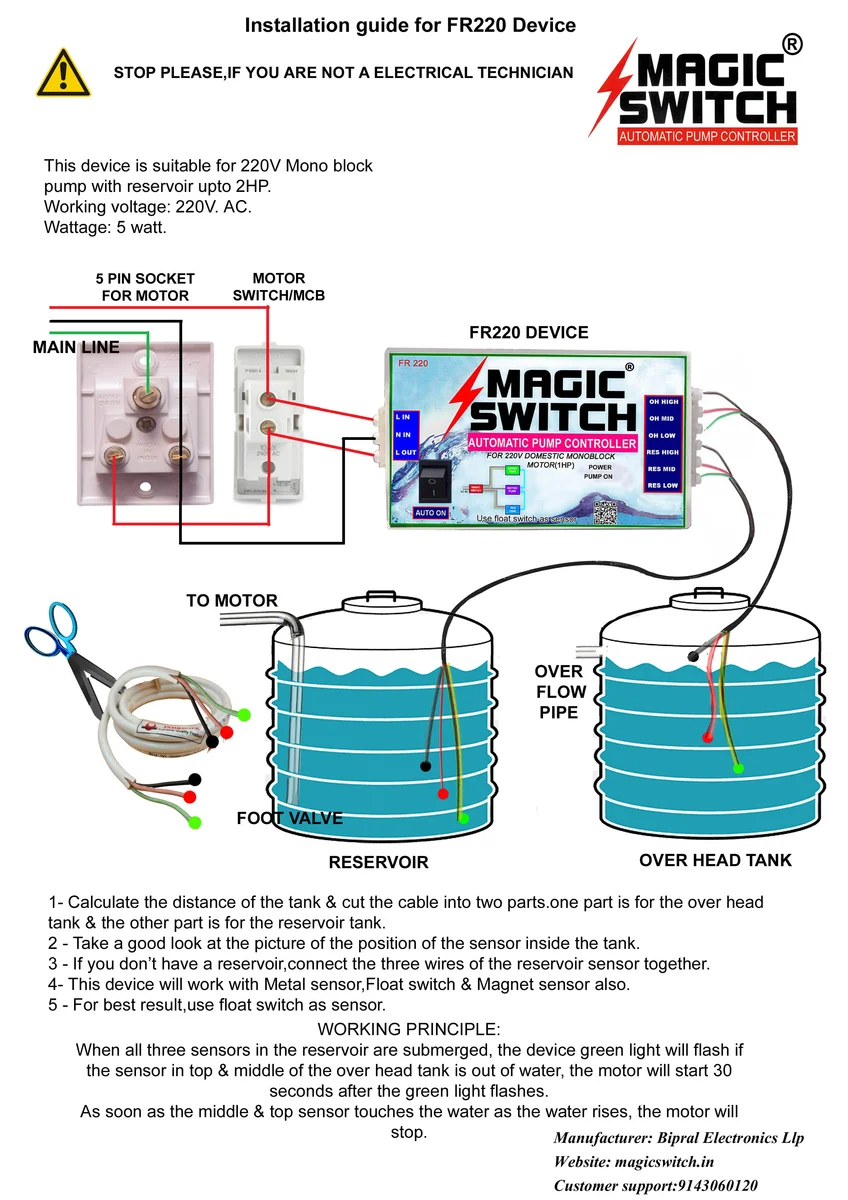

◆YOUTUBE - To understand more details about the installation, click on our YouTube link and watch the video.
