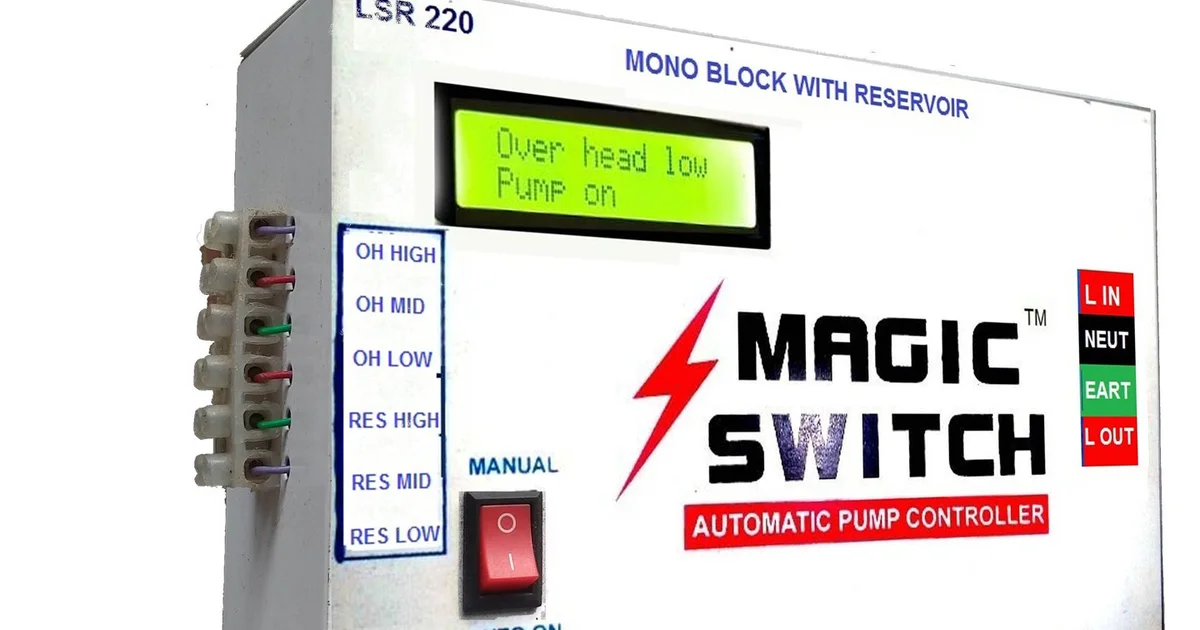

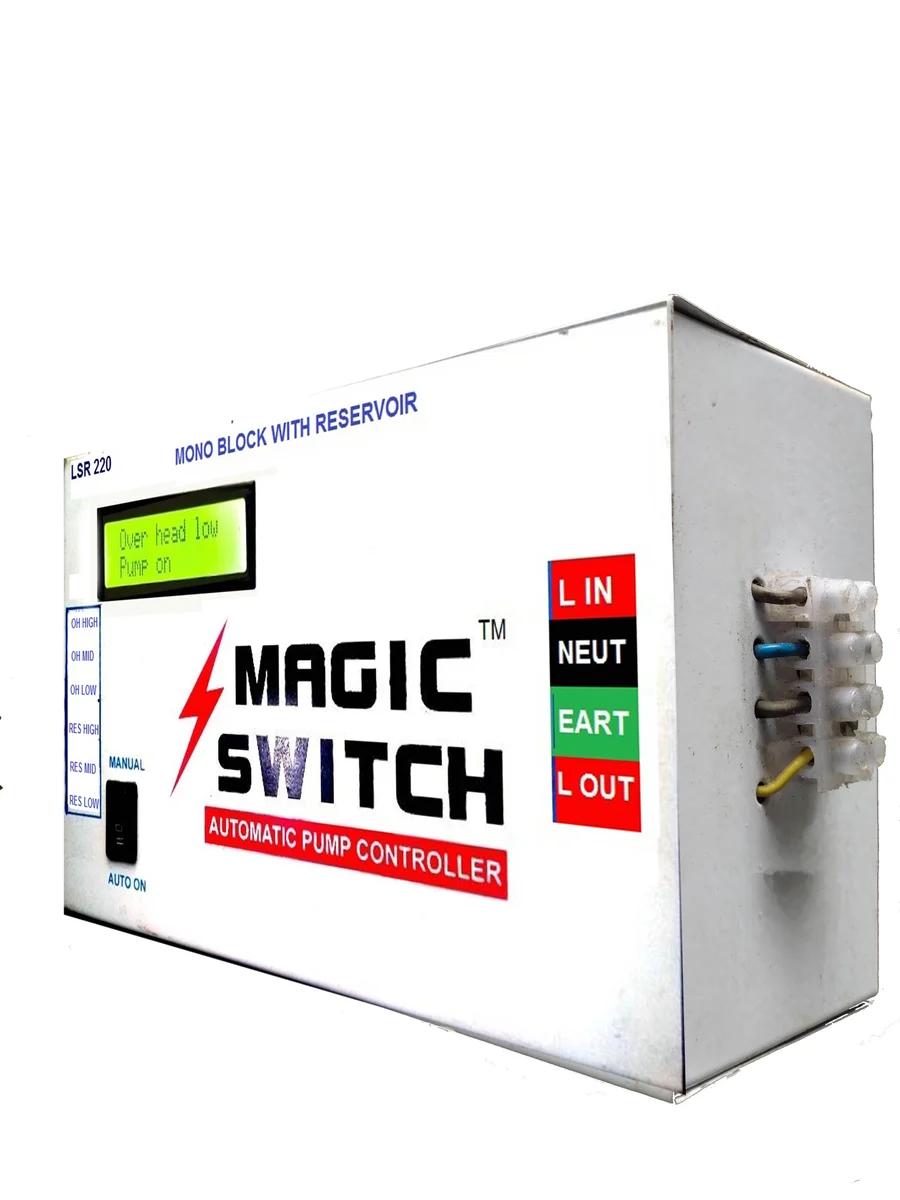

Magic Switch LSR 220

Install Magic Switch LSR 220 Device with your Monoblock/Openwell water Pump.It will Start & Stop your Motor automatically.Reservoir & Overhead Tank both can control with this device.

◆MODEL - LSR 220.

◆BODY MATERIAL -Metal body.

◆WEIGHT - 1.5 Kg.

◆DIMENSION - 8 /5/3 inch.

◆INPUT VOLTAGE - 220 V. AC/50-60 hz.

◆WATTAGE - 6 Watt.

◆HP - Max 2 HP.

◆WARRANTY - 1 Year.

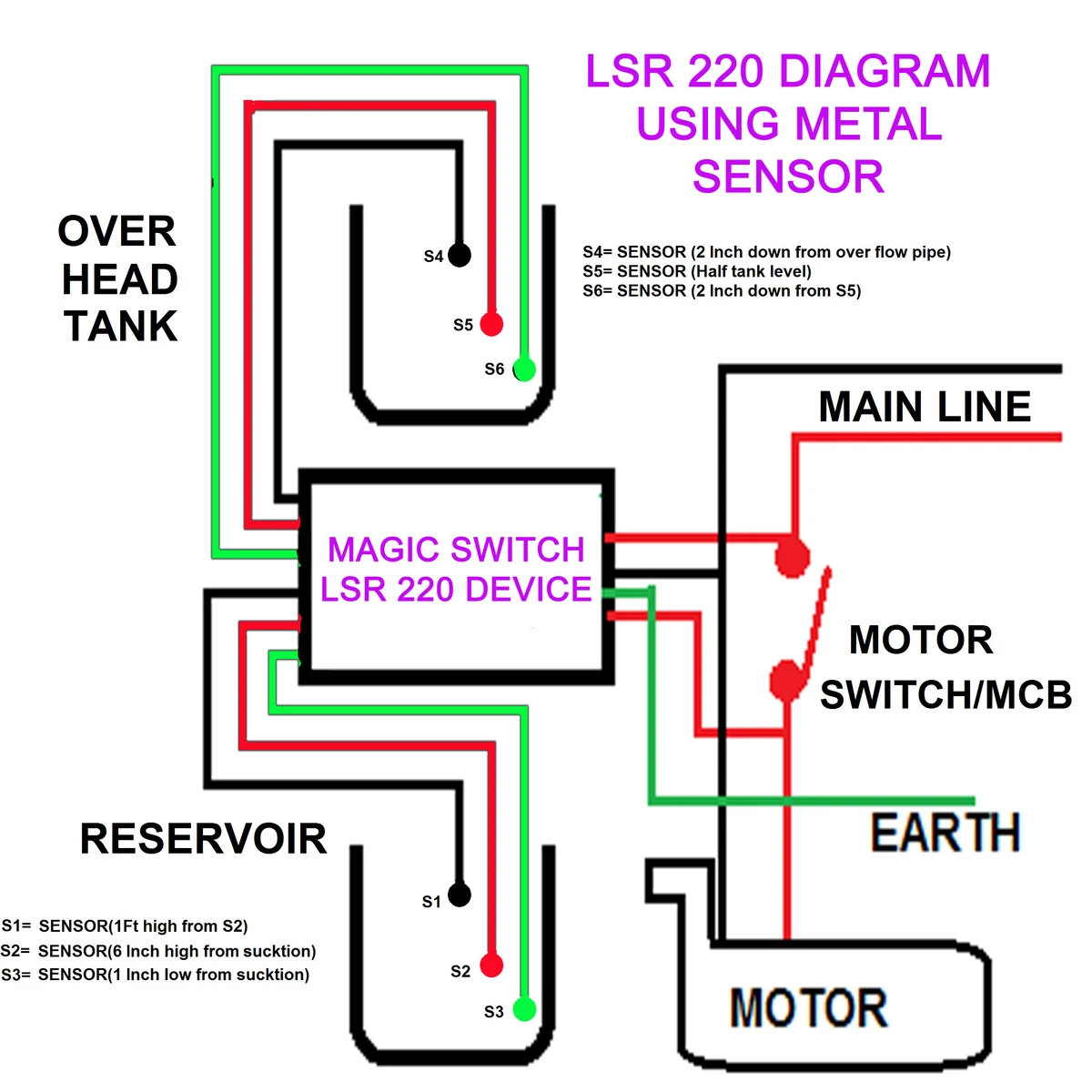

◆CONNECTION POINT -

▪Phase In,Neutral - 220 V AC supply to operate the device.

▪Earth - Since the device is made of metal, it is important to connect it with earthing.

▪Phase Out - supply to Motor Pump.

▪Oh high,Oh mid,Oh low - Will be connected to the over head tank sensor.

▪Res high,Res mid,Res low - Will be connected to the Reservoir tank sensor.

◆ABOUT - LSR 220 device is suitable for 220 volt Open Well Motor Pump or Monoblock Pump, which is switched on & off by simple toogle switch or MCB.LSR 220 device will work with metal type sensor/float sensor and magnet sensor also.

◆YOUTUBE - To understand more details about the installation, click on our YouTube link and watch the video.
