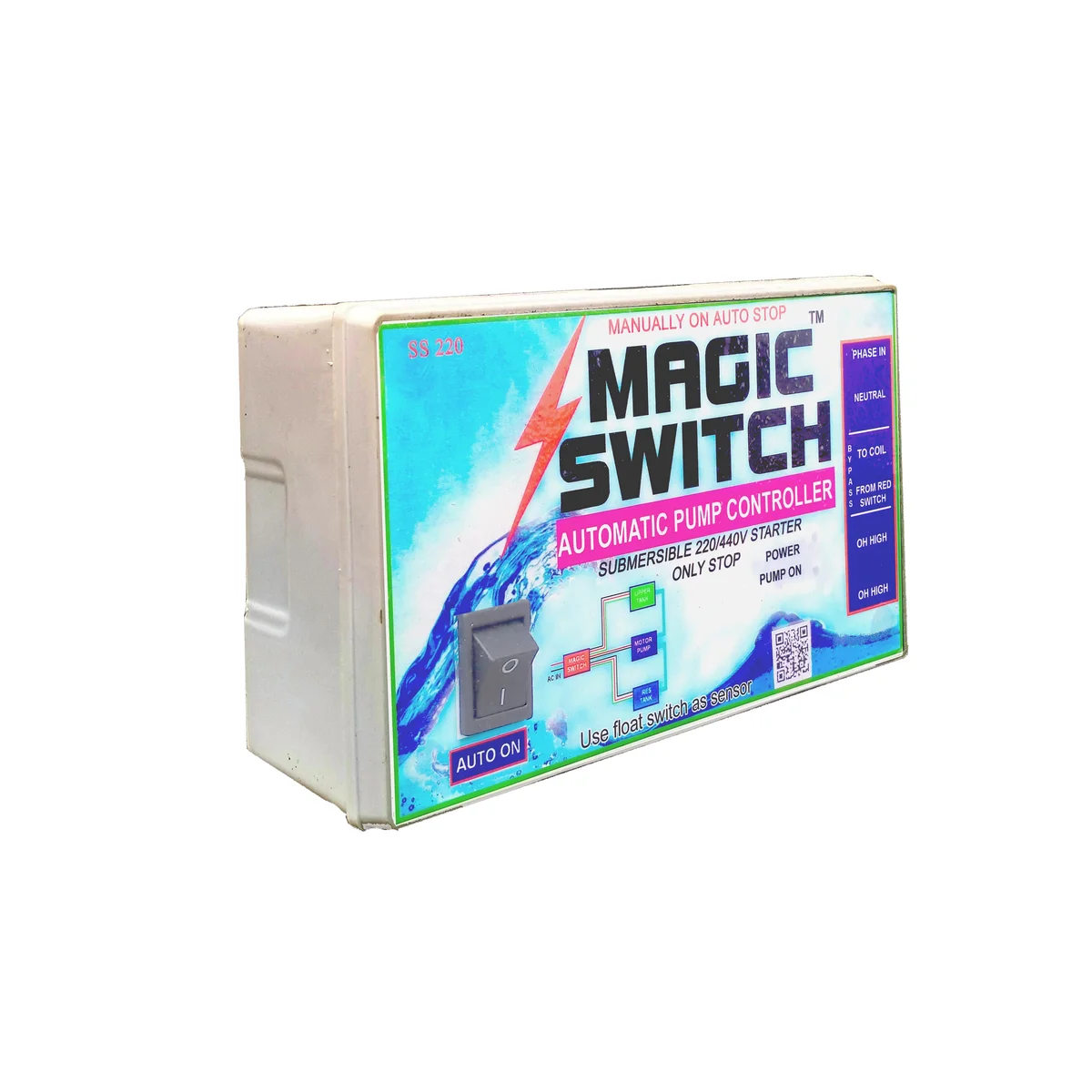

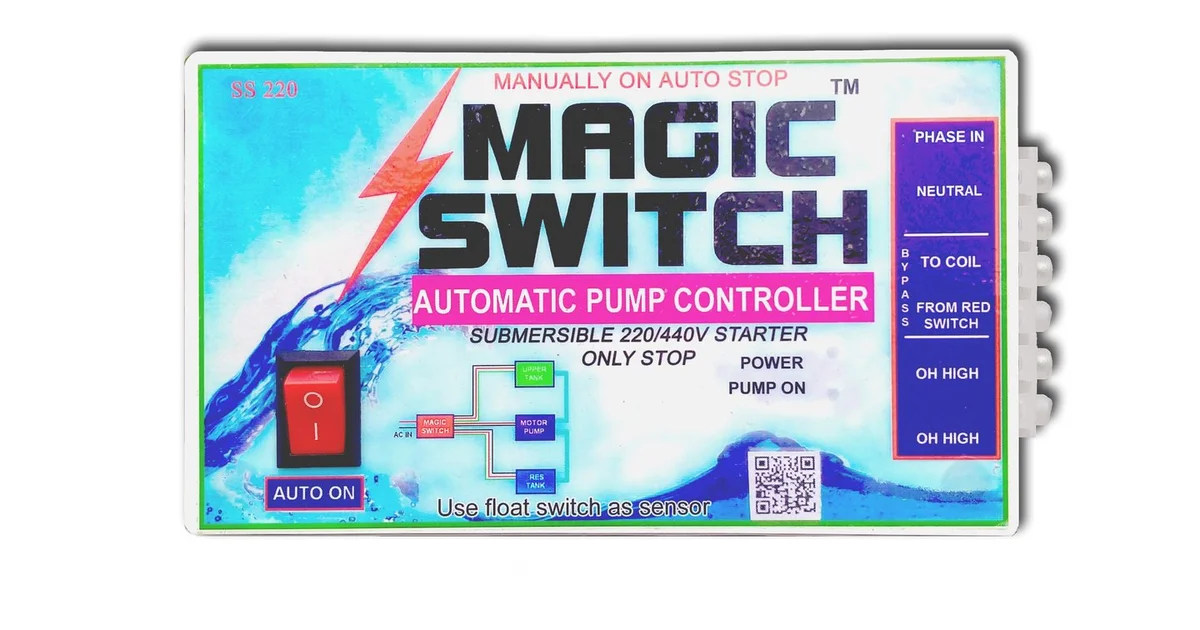

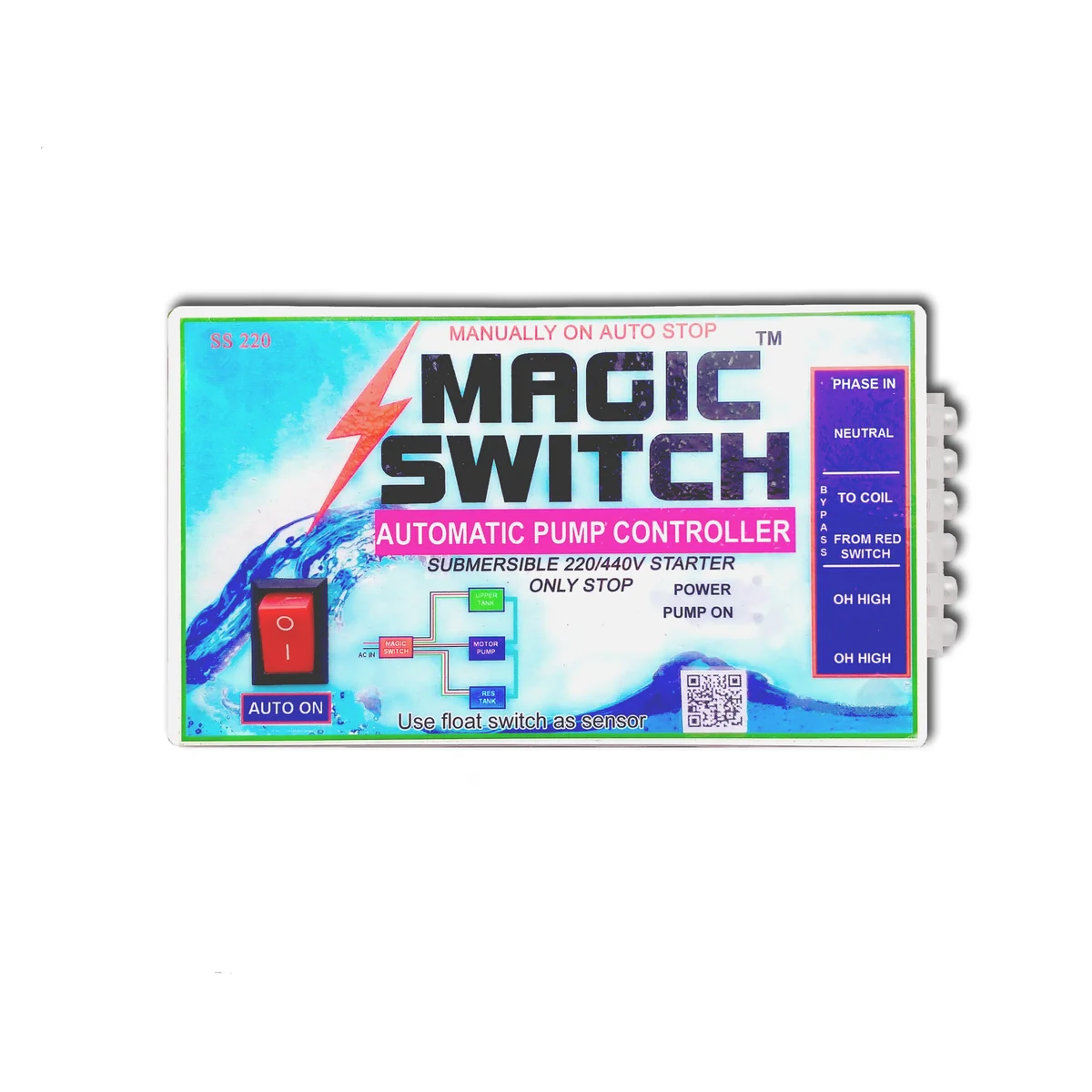

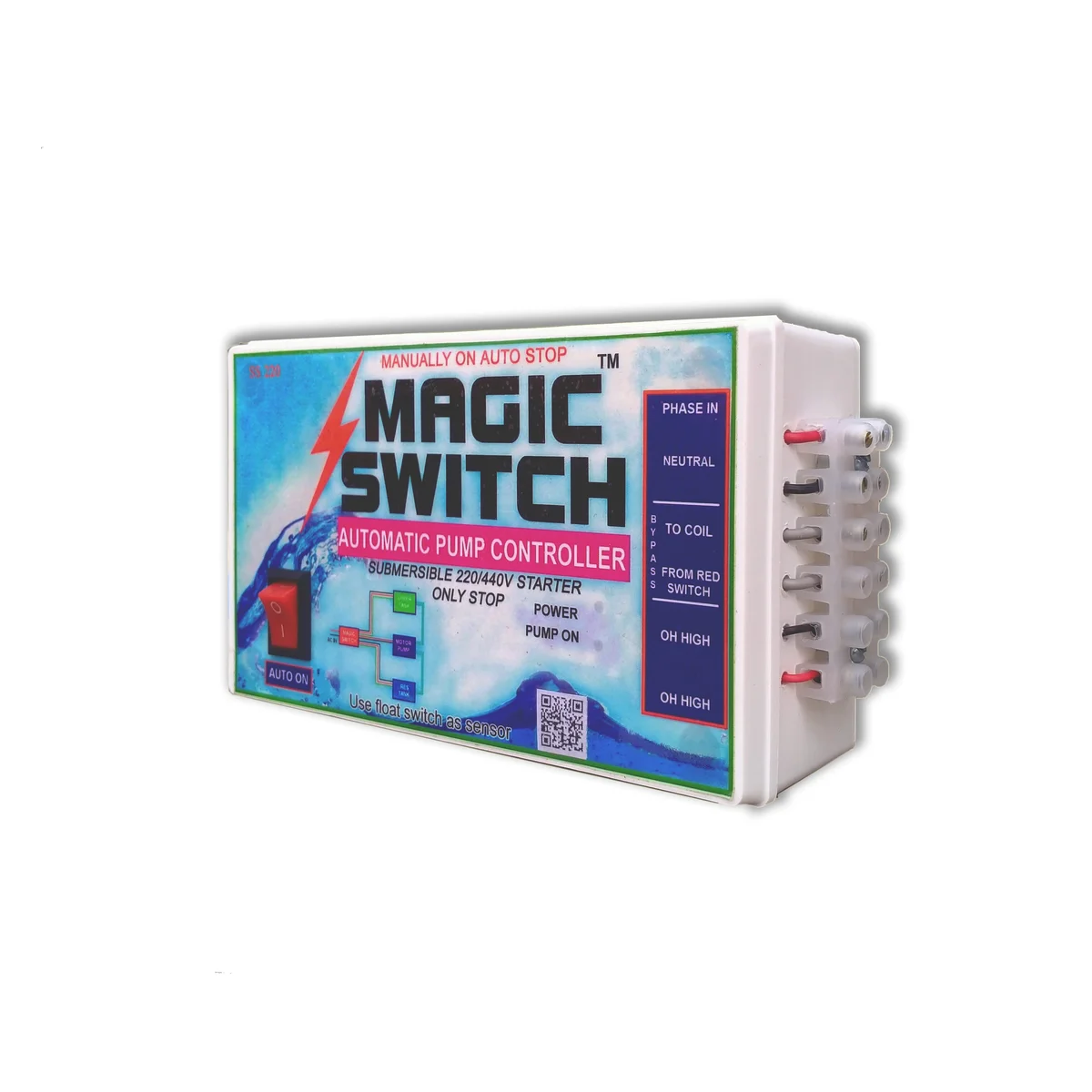

Magic Switch SS 220

Magic Switch SS 220 Device is suitable for 220v/440v submersible starter. it can stoped your pump automatically.But it can't start your motor Automatically.

◆MODEL - SS 220.

◆BODY MATERIAL - Fibre body.

◆WEIGHT - 400 gm.

◆DIMENSION - 6 /3.5/2 inch.

◆INPUT VOLTAGE - 220 V. AC/50-60 hz.

◆WATTAGE - 4 Watt.

◆HP - Any HP.

◆WARRANTY - 1 Year.

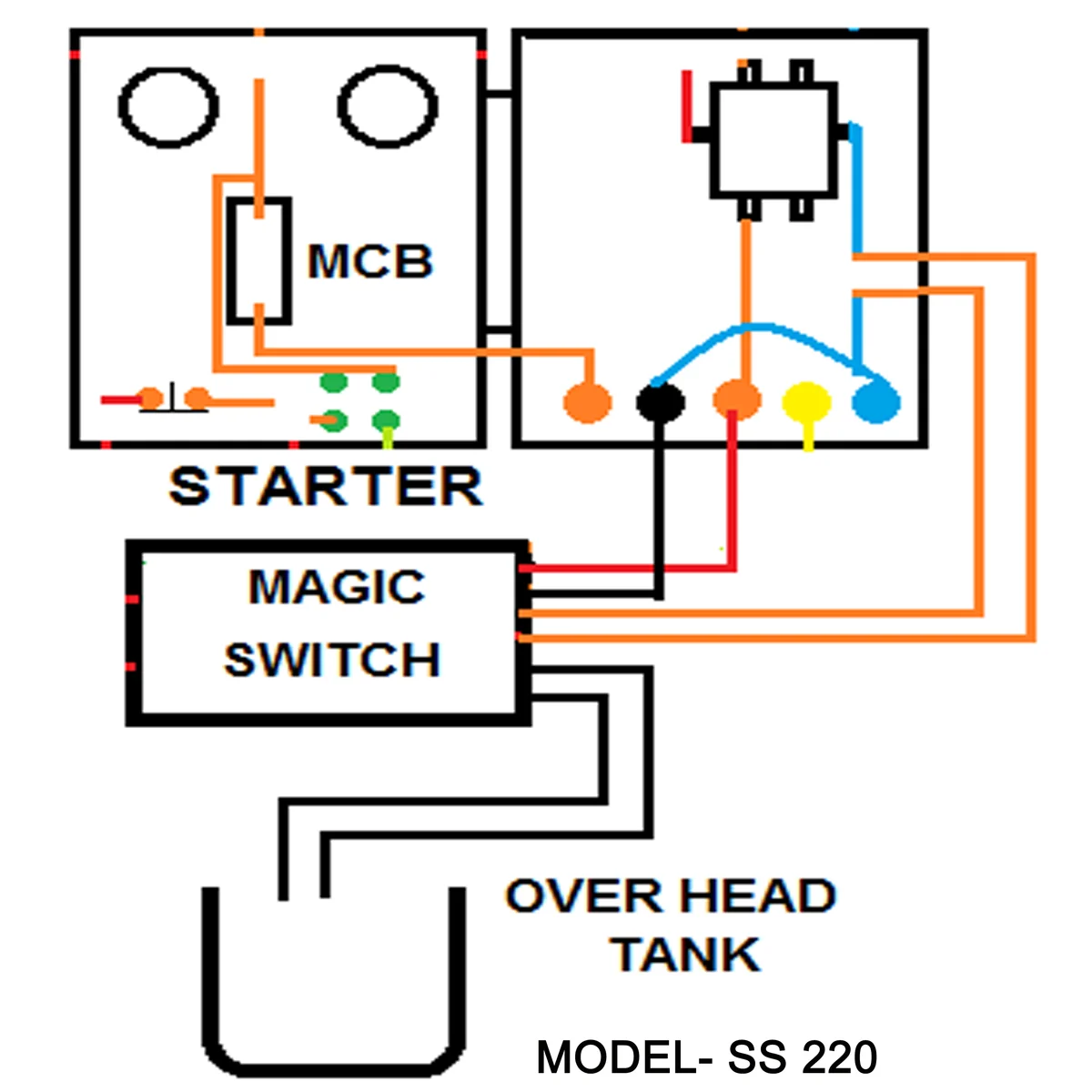

◆CONNECTION POINT -

▪Phase-  Connect to Motor Red Wire .

▪Neutral - Connect to Motor Blue Wire.

▪To coil - The coil & From red switch points are N/C Points of a relay. These two points of the relay have no connection between phase & neutral inside the device. So Look inside the starter.

Cut the wire connected to the coil point of the AC contactor, the wire that shows phase when the pump is turned on.

And connect the coil point from SS 220 device to the coil end point of the contactor.

▪From red switch - The end of the wire that you cut from the coil point should be connected to the From red switch point on SS 220 device.

▪Oh high,Oh high - Will be connected to the over head tank sensor.

◆ABOUT - SS 220 device is suitable for  any type of 220/440 volt submersible starter which has ac contactor in inside.SS 220 device will work with metal type sensor/float sensor and magnet sensor also.

◆WORKING PRINCIPLE - SS 220 Device can stoped your pump automatically when over head tank water is near to over flow pipe.But it is not for automatic Start pump.

◆YOUTUBE - To understand more details about the installation, click on our YouTube link and watch the video.
